Mobile Telephone Base-StationRadio Emission AuditAudit site: Cults AcademyHillview DriveCultsAberdeenAB15 9SAThe Radiocommunications Agency (RA) is responsible for the management of thecivil radio spectrum in the UK. The Government has asked the RA to implement anational measurement programme to ensure that emissions from cellular basestations do not exceed guidelines.RA engineers measure the power density of transmissions in the various radio bandsto be surveyed. The results, derived from electric field voltage measurements, arereferenced to and presented alongside the relevant International Commission onNon-Ionizing Radiation Protection (ICNIRP) recommended public maximum exposurelevels. On the left hand side of the results page(s) is a graphical representation ofthe radio spectrum surveyed at each location on the site. At the top of each graph agreen line indicates the ICNIRP guideline exposure level for that frequency band. Tothe right hand side of each graph is a table showing the ten highest level emissionsrecorded within a band. In addition to this report, results taken from each audit sitewill be posted on the RA website at www.radio.gov.uk where further information onthe audit can be found.Further explanation of the results and their context within ICNIRP guidelines can beprovided by the RA engineers at the time of the audit or by contacting the RA on(020) 7211 0211 or by e-mail at rfaudit@ra.gsi.gov.uk.The DfEE have issued advice and ...

Sujets

Informations

Publié par
Nombre de lectures 37
Langue Romanian

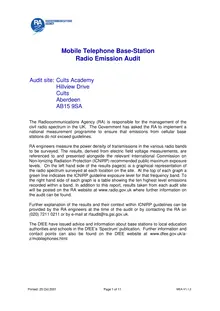

Mobile Telephone Base-Station
Radio Emission Audit
Audit site:
The Radiocommunications Agency (RA) is responsible for the management of the
civil radio spectrum in the UK.
The Government has asked the RA to implement
a
national measurement programme to ensure that emissions from cellular base
stations do not exceed guidelines.
RA engineers measure the power density of transmissions in the various radio bands
to be surveyed. The results, derived from electric field voltage measurements, are
referenced to and presented alongside the relevant International Commission on
Non-Ionizing Radiation Protection (ICNIRP) recommended public maximum exposure
levels.
On the left hand side of the results page(s) is a graphical representation of
the radio spectrum surveyed at each location on the site.
At the top of each graph a
green line indicates the ICNIRP guideline exposure level for that frequency band. To
the right hand side of each graph is a table showing the ten highest level emissions
recorded within a band. In addition to this report, results taken from each audit site
will be posted on the RA website at www.radio.gov.uk where further information on
the audit can be found.
Further explanation of the results and their context within ICNIRP guidelines can be
provided by the RA engineers at the time of the audit or by contacting the RA on
(020) 7211 0211 or by e-mail at rfaudit@ra.gsi.gov.uk.
The DfEE have issued advice and information about base stations to local education
authorities and schools in the DfEE’s ‘Spectrum’ publication.
Further information and
contact points can also be found on the DfEE website at www.dfee.gov.uk/a-
z/mobilephones.html.
Cults Academy
Hillview Drive
Cults
Aberdeen
AB15 9SA
Page 1 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
Report Summary
The Radiocommunications Agency performed this survey of the RF emission
environment prevailing in the vicinity of Cults Academy on 25 October 2001.
As the radio spectrum is continually changing, these measurements can only
provide information on the RF conditions for the specific location(s) at the time of
the survey.
Issued on behalf of the Radiocommunications Agency
Colin Gardner
Radiocommunications Specialist
The following table, sorted in descending order of signal level, summarises the
results obtained at each measurement location.
Issued by:
Received by:
Summary of results:
Total Band
Exposure Quotient
Location
Relationship to
ICNIRP Public
Exposure Level
3.9444187465E-05
Corridor outside
Classroom P13
1/25352
3.2428979728E-05
Athletics track
1/30836
1.0270371354E-05
Classroom A8
1/97367
8.3898378454E-06
Outside at main gate
1/119191
2.7276072268E-06
Classroom 42
1/366621
7.8881569871E-07
Assembly Hall
1/1267723
5.0907951753E-07
Main Office
1/1964329
1.9685155077E-07
Classroom P22
1/5079970
Page 2 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
NGR:
NJ 8849 0355
Manufacturer:
Rohde & Schwarz
Serial Number:
839891/055
Model:
HE200.4050.3609.02
Location:
Classroom A8
Start Time:
25 October 2001
11:46:32
Officer:
Colin Gardner
Site:
Cults Academy
Serial Number:
839.784/013,V02.50-4052.4654.
Taken from GPS
Manufacturer:
ROHDE&SCHWARZ
Receiver:
Model:
EB200
Antenna:
ETACS 917
-933 MHz
1E-13
1E-11
1E-09
1E-07
1E-05
0.001
0.1
10
917
920
923
927
930
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
925.200
9.532E-11
4.63
2.061E-11
925.175
8.693E-11
4.63
1.879E-11
925.225
8.303E-11
4.63
1.795E-11
925.250
6.015E-11
4.63
1.300E-11
925.150
4.357E-11
4.63
9.418E-12
925.275
3.796E-11
4.63
8.204E-12
925.125
2.565E-11
4.63
5.546E-12
925.300
1.120E-11
4.63
2.421E-12
924.325
9.297E-12
4.62
2.012E-12
925.100
7.570E-12
4.63
1.637E-12
Band Exposure Quotient :
1.474E-10
GSM 935-960 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
935
940
945
950
955
Frequency (MHz)
Ex
posure (
W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
940.600
1.602E-08
4.70
3.406E-09
954.800
1.199E-08
4.77
2.511E-09
942.400
9.917E-09
4.71
2.105E-09
950.600
9.876E-09
4.75
2.078E-09
946.400
9.559E-09
4.73
2.020E-09
944.800
9.524E-09
4.72
2.016E-09
959.200
8.978E-09
4.80
1.872E-09
958.000
7.621E-09
4.79
1.591E-09
955.400
5.241E-09
4.78
1.097E-09
956.400
3.894E-09
4.78
8.143E-10
Band Exposure Quotient :
2.465E-08
GSM 1808-1880 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
1808
1823
1837
1851
1866
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
1,857.000
8.645E-05
9.29
9.310E-06
1,855.400
6.245E-06
9.28
6.732E-07
1,856.800
1.402E-06
9.28
1.510E-07
1,857.200
4.235E-07
9.29
4.561E-08
1,821.400
1.660E-07
9.11
1.823E-08
1,863.800
1.355E-07
9.32
1.454E-08
1,859.400
4.351E-08
9.30
4.680E-09
1,817.600
3.777E-08
9.09
4.157E-09
1,830.000
3.602E-08
9.15
3.936E-09
1,855.200
3.353E-08
9.28
3.614E-09
Band Exposure Quotient :
1.025E-05
Total Band Exposure Quotient :
1.027E-05
Number of Frequencies Used in Quotient :
1128
Page 3 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
NGR:
NJ 8850 0356
Manufacturer:
Rohde & Schwarz
Serial Number:
839891/055
Model:
HE200.4050.3609.02
Location:
Classroom 42
Start Time:
25 October 2001
12:23:13
Officer:
Colin Gardner
Site:
Cults Academy
Serial Number:
839.784/013,V02.50-4052.4654.
Taken from GPS
Manufacturer:
ROHDE&SCHWARZ
Receiver:
Model:
EB200
Antenna:
ETACS 917
-933 MHz
1E-13
1E-11
1E-09
1E-07
1E-05
0.001
0.1
10
917
920
923
927
930
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
925.225
6.445E-09
4.63
1.393E-09
925.175
5.238E-09
4.63
1.132E-09
925.200
3.542E-09
4.63
7.656E-10
925.250
2.749E-09
4.63
5.943E-10
925.150
2.450E-09
4.63
5.296E-10
925.275
1.257E-09
4.63
2.717E-10
925.125
1.094E-09
4.63
2.366E-10
925.100
8.111E-10
4.63
1.754E-10
925.300
6.156E-10
4.63
1.331E-10
925.075
2.234E-10
4.63
4.830E-11
Band Exposure Quotient :
5.361E-09
GSM 935-960 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
935
940
945
950
955
Frequency (MHz)
Ex
posure (
W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
943.600
6.571E-07
4.72
1.393E-07
959.200
4.934E-07
4.80
1.029E-07
954.800
4.884E-07
4.77
1.023E-07
957.200
2.762E-07
4.79
5.771E-08
946.400
2.514E-07
4.73
5.313E-08
944.600
2.337E-07
4.72
4.947E-08
940.600
2.263E-07
4.70
4.811E-08
958.400
2.251E-07
4.79
4.698E-08
945.000
2.183E-07
4.72
4.620E-08
942.400
1.934E-07
4.71
4.104E-08
Band Exposure Quotient :
9.990E-07
GSM 1808-1880 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
1808
1823
1837
1851
1866
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
1,830.000
6.405E-06
9.15
7.000E-07
1,821.400
2.399E-06
9.11
2.634E-07
1,834.600
1.479E-06
9.17
1.612E-07
1,863.800
6.484E-07
9.32
6.958E-08
1,859.400
6.435E-07
9.30
6.922E-08
1,817.600
5.587E-07
9.09
6.148E-08
1,865.600
4.104E-07
9.33
4.400E-08
1,860.000
3.882E-07
9.30
4.174E-08
1,858.400
3.530E-07
9.29
3.799E-08
1,828.200
3.056E-07
9.14
3.343E-08
Band Exposure Quotient :
1.723E-06
Total Band Exposure Quotient :
2.728E-06
Number of Frequencies Used in Quotient :
1128
Page 4 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
NGR:
NJ 8865 0359
Manufacturer:
Rohde & Schwarz
Serial Number:
839891/055
Model:
HE200.4050.3609.02
Location:
Corridor outside Classroom P13
Start Time:
25 October 2001
12:56:21
Officer:
Colin Gardner
Site:
Cults Academy
Serial Number:
839.784/013,V02.50-4052.4654.
Taken from GPS
Manufacturer:
ROHDE&SCHWARZ
Receiver:
Model:
EB200
Antenna:
ETACS 917
-933 MHz
1E-13
1E-11
1E-09
1E-07
1E-05
0.001
0.1
10
917
920
923
927
930
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
925.200
1.992E-09
4.63
4.305E-10
925.225
1.946E-09
4.63
4.207E-10
925.175
1.946E-09
4.63
4.207E-10
925.250
1.022E-09
4.63
2.208E-10
925.150
7.571E-10
4.63
1.637E-10
925.125
6.013E-10
4.63
1.300E-10
925.275
3.383E-10
4.63
7.312E-11
925.300
2.038E-10
4.63
4.406E-11
925.100
1.346E-10
4.63
2.910E-11
925.075
7.746E-11
4.63
1.675E-11
Band Exposure Quotient :
2.037E-09
GSM 935-960 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
935
940
945
950
955
Frequency (MHz)
Ex
posure (
W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
942.400
9.471E-08
4.71
2.010E-08
950.600
8.215E-08
4.75
1.728E-08
943.600
8.084E-08
4.72
1.713E-08
946.400
7.593E-08
4.73
1.605E-08
954.800
7.224E-08
4.77
1.513E-08
958.000
6.053E-08
4.79
1.264E-08
955.400
6.017E-08
4.78
1.260E-08
959.200
5.932E-08
4.80
1.237E-08
956.400
5.500E-08
4.78
1.150E-08
940.600
5.428E-08
4.70
1.154E-08
Band Exposure Quotient :
1.993E-07
GSM 1808-1880 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
1808
1823
1837
1851
1866
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
1,857.000
1.250E-04
9.29
1.346E-05
1,853.200
9.417E-05
9.27
1.016E-05
1,863.800
8.353E-05
9.32
8.964E-06
1,855.400
4.961E-05
9.28
5.347E-06
1,856.800
1.935E-06
9.28
2.084E-07
1,855.200
1.430E-06
9.28
1.542E-07
1,853.000
1.299E-06
9.27
1.403E-07
1,830.000
1.278E-06
9.15
1.397E-07
1,863.600
1.126E-06
9.32
1.209E-07
1,834.600
7.762E-07
9.17
8.461E-08
Band Exposure Quotient :
3.924E-05
Total Band Exposure Quotient :
3.944E-05
Number of Frequencies Used in Quotient :
1128
Page 5 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
NGR:
NJ 8870 0359
Manufacturer:
Rohde & Schwarz
Serial Number:
839891/055
Model:
HE200.4050.3609.02
Location:
Classroom P22
Start Time:
25 October 2001
13:23:22
Officer:
Colin Gardner
Site:
Cults Academy
Serial Number:
839.784/013,V02.50-4052.4654.
Taken from GPS
Manufacturer:
ROHDE&SCHWARZ
Receiver:
Model:
EB200
Antenna:
ETACS 917
-933 MHz
1E-13
1E-11
1E-09
1E-07
1E-05
0.001
0.1
10
917
920
923
927
930
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
925.200
5.238E-11
4.63
1.132E-11
925.225
2.687E-11
4.63
5.808E-12
925.250
2.038E-11
4.63
4.406E-12
925.150
1.695E-11
4.63
3.664E-12
925.175
1.476E-11
4.63
3.191E-12
925.275
8.497E-12
4.63
1.837E-12
925.125
6.594E-12
4.63
1.425E-12
925.100
2.450E-12
4.63
5.296E-13
925.300
2.395E-12
4.63
5.177E-13
925.075
1.120E-12
4.63
2.421E-13
Band Exposure Quotient :
8.302E-11
GSM 935-960 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
935
940
945
950
955
Frequency (MHz)
Ex
posure (
W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
942.400
3.685E-09
4.71
7.820E-10
956.400
1.864E-09
4.78
3.898E-10
939.400
1.834E-09
4.70
3.905E-10
946.400
1.586E-09
4.73
3.352E-10
943.600
1.281E-09
4.72
2.715E-10
944.800
1.020E-09
4.72
2.160E-10
945.600
7.936E-10
4.73
1.679E-10
954.800
6.742E-10
4.77
1.412E-10
940.600
5.183E-10
4.70
1.102E-10
959.200
5.167E-10
4.80
1.077E-10
Band Exposure Quotient :
3.695E-09
GSM 1808-1880 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
1808
1823
1837
1851
1866
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
1,863.800
4.807E-07
9.32
5.158E-08
1,857.000
3.442E-07
9.29
3.707E-08
1,853.200
3.341E-07
9.27
3.606E-08
1,855.400
2.790E-07
9.28
3.007E-08
1,830.000
8.640E-08
9.15
9.442E-09
1,834.600
4.786E-08
9.17
5.217E-09
1,820.800
3.798E-08
9.10
4.172E-09
1,821.400
2.512E-08
9.11
2.759E-09
1,859.400
2.504E-08
9.30
2.693E-09
1,817.600
1.504E-08
9.09
1.655E-09
Band Exposure Quotient :
1.931E-07
Total Band Exposure Quotient :
1.969E-07
Number of Frequencies Used in Quotient :
1128
Page 6 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
NGR:
NJ 8861 0358
Manufacturer:
Rohde & Schwarz
Serial Number:
839891/055
Model:
HE200.4050.3609.02
Location:
Main Office
Start Time:
25 October 2001
14:19:32
Officer:
Colin Gardner
Site:
Cults Academy
Serial Number:
839.784/013,V02.50-4052.4654.
Taken from GPS
Manufacturer:
ROHDE&SCHWARZ
Receiver:
Model:
EB200
Antenna:
ETACS 917
-933 MHz
1E-13
1E-11
1E-09
1E-07
1E-05
0.001
0.1
10
917
920
923
927
930
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
925.225
1.257E-10
4.63
2.716E-11
925.175
8.495E-11
4.63
1.836E-11
925.250
8.303E-11
4.63
1.795E-11
925.200
7.929E-11
4.63
1.714E-11
925.150
7.230E-11
4.63
1.563E-11
925.125
4.562E-11
4.63
9.862E-12
925.100
1.991E-11
4.63
4.305E-12
925.275
1.947E-11
4.63
4.208E-12
925.300
7.401E-12
4.63
1.600E-12
925.075
5.001E-12
4.63
1.081E-12
Band Exposure Quotient :
1.849E-10
GSM 935-960 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
935
940
945
950
955
Frequency (MHz)
Ex
posure (
W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
943.600
2.278E-08
4.72
4.829E-09
942.400
1.278E-08
4.71
2.711E-09
958.000
1.102E-08
4.79
2.300E-09
956.400
7.951E-09
4.78
1.663E-09
955.400
7.752E-09
4.78
1.623E-09
954.800
7.741E-09
4.77
1.622E-09
946.400
7.086E-09
4.73
1.497E-09
944.800
6.009E-09
4.72
1.272E-09
940.600
5.951E-09
4.70
1.265E-09
957.200
2.699E-09
4.79
5.639E-10
Band Exposure Quotient :
2.229E-08
GSM 1808-1880 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
1808
1823
1837
1851
1866
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
1,857.000
3.688E-06
9.29
3.972E-07
1,863.800
3.103E-07
9.32
3.330E-08
1,830.000
2.796E-07
9.15
3.055E-08
1,856.800
5.710E-08
9.28
6.150E-09
1,853.200
3.419E-08
9.27
3.690E-09
1,834.600
2.630E-08
9.17
2.867E-09
1,853.000
1.835E-08
9.27
1.981E-09
1,857.200
1.538E-08
9.29
1.656E-09
1,821.400
9.121E-09
9.11
1.002E-09
1,859.400
8.290E-09
9.30
8.917E-10
Band Exposure Quotient :
4.866E-07
Total Band Exposure Quotient :
5.091E-07
Number of Frequencies Used in Quotient :
1128
Page 7 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
NGR:
NJ 8866 0362
Manufacturer:
Rohde & Schwarz
Serial Number:
839891/055
Model:
HE200.4050.3609.02
Location:
Outside at main gate
Start Time:
25 October 2001
14:44:52
Officer:
Colin Gardner
Site:
Cults Academy
Serial Number:
839.784/013,V02.50-4052.4654.
Taken from GPS
Manufacturer:
ROHDE&SCHWARZ
Receiver:
Model:
EB200
Antenna:
ETACS 917
-933 MHz
1E-13
1E-11
1E-09
1E-07
1E-05
0.001
0.1
10
917
920
923
927
930
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
925.150
4.458E-09
4.63
9.638E-10
925.200
3.461E-09
4.63
7.482E-10
925.225
2.879E-09
4.63
6.223E-10
925.250
2.626E-09
4.63
5.676E-10
925.175
2.507E-09
4.63
5.420E-10
925.275
1.316E-09
4.63
2.845E-10
925.125
1.228E-09
4.63
2.654E-10
925.100
4.561E-10
4.63
9.861E-11
925.300
3.709E-10
4.63
8.018E-11
925.325
1.095E-10
4.63
2.366E-11
Band Exposure Quotient :
4.284E-09
GSM 935-960 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
935
940
945
950
955
Frequency (MHz)
Ex
posure (
W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
946.400
1.350E-07
4.73
2.853E-08
944.800
1.315E-07
4.72
2.783E-08
959.200
1.079E-07
4.80
2.251E-08
956.400
1.073E-07
4.78
2.243E-08
942.400
9.917E-08
4.71
2.105E-08
955.400
7.752E-08
4.78
1.623E-08
958.000
6.486E-08
4.79
1.354E-08
950.600
6.377E-08
4.75
1.342E-08
954.800
4.998E-08
4.77
1.047E-08
940.600
2.481E-08
4.70
5.275E-09
Band Exposure Quotient :
2.205E-07
GSM 1808-1880 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
1808
1823
1837
1851
1866
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
1,863.800
6.051E-05
9.32
6.494E-06
1,857.000
6.867E-06
9.29
7.396E-07
1,830.000
2.492E-06
9.15
2.723E-07
1,853.200
1.527E-06
9.27
1.648E-07
1,863.600
8.160E-07
9.32
8.757E-08
1,834.600
7.412E-07
9.17
8.081E-08
1,855.400
5.964E-07
9.28
6.429E-08
1,821.400
2.952E-07
9.11
3.241E-08
1,858.400
2.332E-07
9.29
2.510E-08
1,860.000
2.234E-07
9.30
2.402E-08
Band Exposure Quotient :
8.165E-06
Total Band Exposure Quotient :
8.390E-06
Number of Frequencies Used in Quotient :
1128
Page 8 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
NGR:
NJ 8862 0358
Manufacturer:
Rohde & Schwarz
Serial Number:
839891/055
Model:
HE200.4050.3609.02
Location:
Assembly Hall
Start Time:
25 October 2001
15:38:47
Officer:
Colin Gardner
Site:
Cults Academy
Serial Number:
839.784/013,V02.50-4052.4654.
Manufacturer:
ROHDE&SCHWARZ
Receiver:
Model:
EB200
Antenna:
ETACS 917
-933 MHz
1E-13
1E-11
1E-09
1E-07
1E-05
0.001
0.1
10
917
920
923
927
930
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
925.200
5.119E-11
4.63
1.107E-11
925.175
3.156E-11
4.63
6.823E-12
925.225
3.085E-11
4.63
6.668E-12
925.150
3.014E-11
4.63
6.516E-12
925.250
2.879E-11
4.63
6.223E-12
925.275
1.947E-11
4.63
4.208E-12
925.125
8.494E-12
4.63
1.836E-12
925.300
4.067E-12
4.63
8.791E-13
925.100
3.623E-12
4.63
7.833E-13
925.075
1.200E-12
4.63
2.594E-13
Band Exposure Quotient :
9.195E-11
GSM 935-960 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
935
940
945
950
955
Frequency (MHz)
Ex
posure (
W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
943.600
2.803E-08
4.72
5.941E-09
942.400
2.669E-08
4.71
5.665E-09
939.400
2.418E-08
4.70
5.147E-09
945.600
2.040E-08
4.73
4.314E-09
959.200
1.423E-08
4.80
2.967E-09
945.000
1.377E-08
4.72
2.915E-09
940.600
1.187E-08
4.70
2.525E-09
954.800
1.020E-08
4.77
2.138E-09
944.800
9.745E-09
4.72
2.063E-09
950.600
9.432E-09
4.75
1.984E-09
Band Exposure Quotient :
4.549E-08
GSM 1808-1880 MHz
1E-12
1E-10
1E-08
1E-06
0.0001
0.01
1
1808
1823
1837
1851
1866
Frequency (MHz)
Ex
posure (W/m²)
Frequency
(MHz)
Maximum
Exposure
(W/m²)
ICNIRP
Limit
(W/m²)
Frequency
Exposure
Quotient
1,857.000
5.845E-06
9.29
6.295E-07
1,863.800
3.818E-07
9.32
4.097E-08
1,820.800
1.478E-07
9.10
1.623E-08
1,830.000
1.139E-07
9.15
1.245E-08
1,856.800
9.260E-08
9.28
9.974E-09
1,821.400
9.121E-08
9.11
1.002E-08
1,853.200
4.304E-08
9.27
4.645E-09
1,859.400
3.703E-08
9.30
3.983E-09
1,857.200
2.672E-08
9.29
2.878E-09
1,855.200
1.929E-08
9.28
2.080E-09
Band Exposure Quotient :
7.432E-07
Total Band Exposure Quotient :
7.888E-07
Number of Frequencies Used in Quotient :
1128
Page 9 of 11
25 Oct 2001
Printed:
MEA-V1.1.2
